Stationary Assembly and Tack Welding Fixture

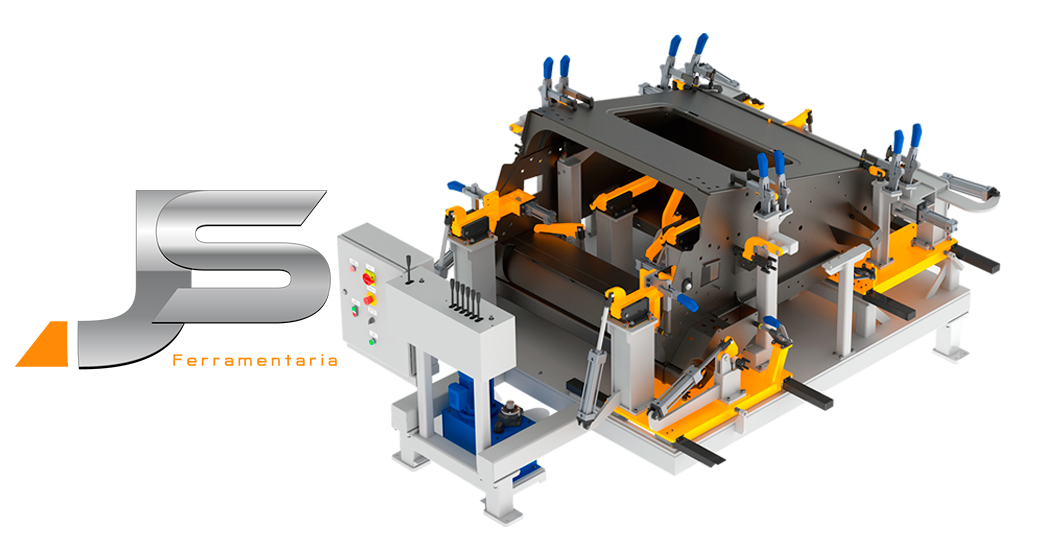

The JS Tooling Stationary Assembly and Tack Welding Fixture is specifically designed for the assembly and tack welding of combine harvester feeder housing assemblies, delivering exceptional dimensional accuracy, repeatability, and operator safety throughout the manufacturing process.

Developed to meet the demanding requirements of agricultural equipment manufacturers, the fixture ensures precise alignment of structural components while minimizing process variation and improving the overall quality of the finished assembly. Its ergonomic design enhances operator comfort while optimizing production flow and reducing cycle times.

The system incorporates both mechanical and hydraulic actuation, combined with dual-hand safety controls, providing complete operational control throughout the assembly process. Six independently controlled movable clamping stations allow selective operation, providing greater flexibility for positioning and securing components.

For maximum reliability, the fixture is equipped with a 20-liter hydraulic power unit, with each hydraulic actuator secured by pilot-operated check valves and individually monitored through pressure switches. A quick-change setup system featuring adjustable linear guide rails enables fast and accurate changeovers between different product models, significantly reducing setup time.

The automation system is integrated through an electrical control panel designed in compliance with applicable OSHA machine safety regulations, ANSI B11 machine safety standards, and NFPA 70E electrical safety requirements. A 7-inch Human-Machine Interface (HMI) provides intuitive machine operation and real-time process monitoring. For additional operator protection, the system includes a safety laser scanner that continuously monitors the operating area.

Key Features:
• Dedicated fixture for assembly and tack welding of combine harvester feeder housing assemblies
• Integrated mechanical and hydraulic actuation system
• Dual-hand safety controls
• Six independently controlled movable clamping stations
• 20-liter hydraulic power unit
• Individual actuator monitoring via pressure switches
• Quick-change setup system with adjustable linear guide rails
• Electrical control panel designed in accordance with OSHA, ANSI B11, and NFPA 70E safety requirements
• 7-inch Human-Machine Interface (HMI)
• Safety laser scanner for operator and work area protection
• Technical Documentation Included

Every system is supplied with comprehensive documentation to support safe operation and preventive maintenance, including:
• Standard Operating Procedure (SOP)
• Autonomous Maintenance (AM) and Preventive Maintenance (PM) Schedules
• Engineering Responsibility Documentation

Benefits
• Improved manufacturing process standardization
• Reduced rework and material waste
• Excellent dimensional repeatability
• Enhanced operator safety
• Improved ergonomics
• Faster changeovers between product models
• Increased productivity and finished product quality

JS Tooling designs and manufactures custom fixtures, welding positioners, and engineered manufacturing solutions that improve productivity, precision, safety, and quality across heavy-duty manufacturing operations.
