Motorized Rotary Fixture for Assembly and Tack Welding
of Backhoe Loader Frame Assemblies

Precision, Ergonomics, and Safety for Heavy Welded Structures

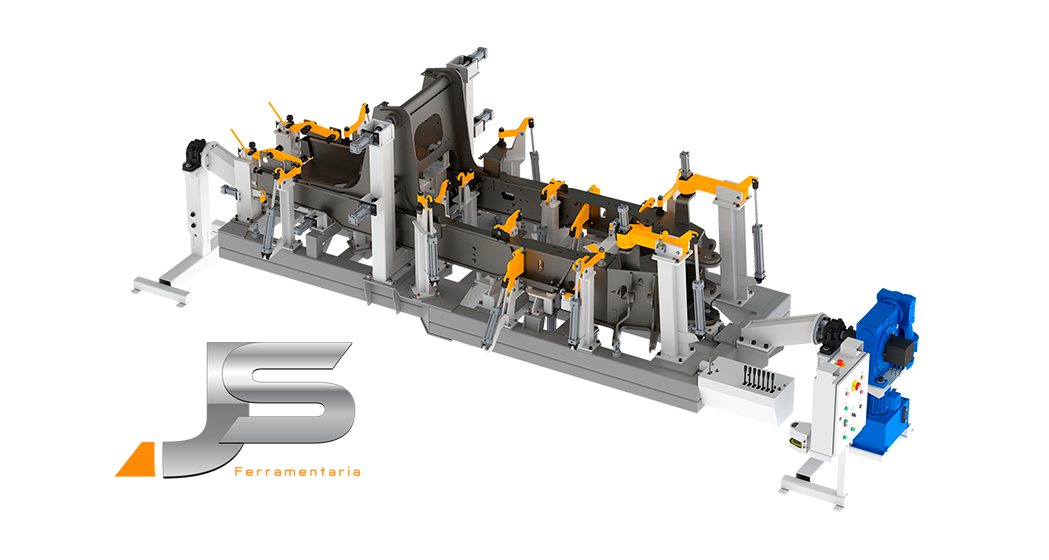

The JS Tooling Motorized Rotary Fixture is specifically engineered for the assembly and tack welding of backhoe loader frame assemblies, delivering exceptional productivity, operator safety, and manufacturing quality.

Designed for applications requiring high clamping force and precise workpiece positioning, the system securely holds large structural components throughout the welding process, minimizing weld distortion while ensuring dimensional repeatability and compliance with product engineering specifications.

Equipped with a motorized 360° rotation system, the fixture enables optimal positioning of the workpiece during every stage of the operation. This provides unrestricted access to weld joints, significantly reduces manual material handling, and creates a safer, more ergonomic, and highly standardized manufacturing process.

Key Features:
Integrated mechanical and hydraulic actuation system for maximum operational reliability
Dual-hand safety controls for enhanced operator protection
Controlled motorized 360° workpiece rotation for complete welding access
Dedicated hydraulic power unit (HPU) with individual pressure switch monitoring
Hydraulic actuators secured by pilot-operated check valves for maximum stability and operational safety
Electrical control panel designed in compliance with applicable OSHA regulations, ANSI B11 machine safety standards, and NFPA 70E electrical safety requirements

Production Benefits:
• Improved operator ergonomics
• Reduced physical effort and manual handling of heavy components
• Higher weld quality and consistency
• Increased productivity and manufacturing efficiency
• Enhanced operator safety during assembly and tack welding operations
• Greater process standardization and repeatability
• Technical Documentation Included

Every system is supplied with complete documentation to ensure safe operation and effective maintenance, including:
Todos os equipamentos são fornecidos com documentação completa para operação e manutenção:
• Standard Operating Procedure (SOP)
• Autonomous Maintenance (AM) and Preventive Maintenance (PM) Schedules
• Engineering Responsibility Documentation

JS Tooling designs and manufactures custom fixtures, welding positioners, and engineered manufacturing solutions that improve productivity, precision, safety, and quality in heavy-duty manufacturing applications.
