Technology and Durability for High-Efficiency Welding Operations

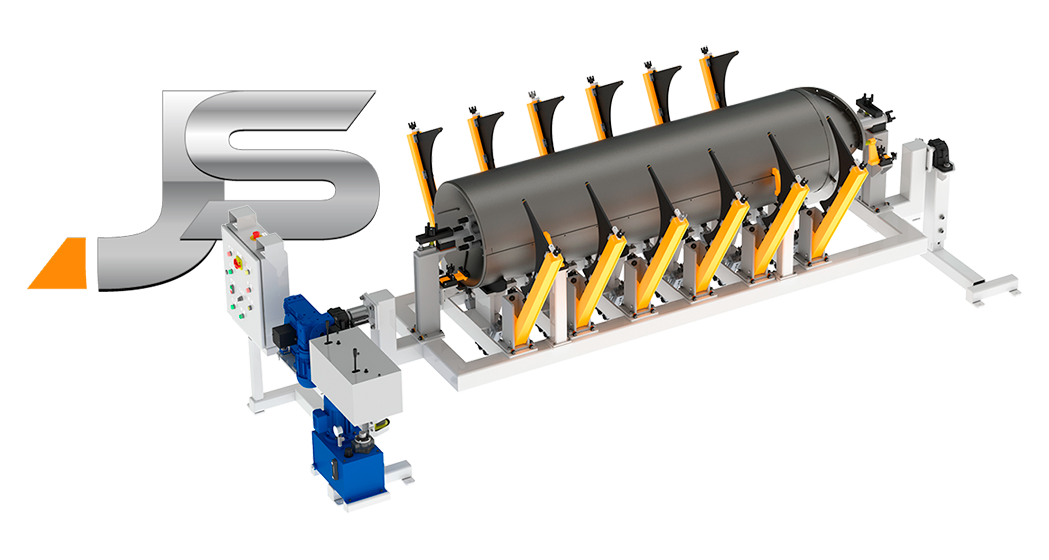

The JS Tooling Motorized Hydraulic Rotary Fixture is specifically engineered for the assembly, tack welding, and partial welding of combine harvester rotor assemblies, delivering outstanding precision, operator safety, and productivity throughout every stage of the manufacturing process.

Designed to meet the demanding requirements of agricultural equipment manufacturers, the system features a gear motor-driven rotary positioner that provides precise, controlled workpiece positioning during welding operations. This ensures unrestricted access to weld joints while improving operator ergonomics and manufacturing efficiency.

The combination of mechanical and hydraulic clamping systems provides maximum rigidity and stability, securely holding the assembly throughout the fabrication process. Equipped with dual-hand safety controls and an electrical control panel designed in accordance with applicable OSHA regulations, ANSI B11 machine safety standards, and NFPA 70E electrical safety requirements, the fixture delivers safe, reliable, and repeatable performance in demanding industrial environments.

Key Features
• Gear motor-driven rotary positioning system for precise workpiece rotation
• Combined mechanical and hydraulic clamping system for maximum rigidity and stability
• Dual-hand safety controls to prevent unintended machine operation
• Heavy-duty construction designed for continuous industrial production
• Electrical control panel designed in compliance with OSHA, ANSI B11, and NFPA 70E safety requirements
• Dedicated solution for the assembly, tack welding, and partial welding of combine harvester rotor assemblies

Production Benefits
• Increased flexibility for multiple rotor assembly configurations
• Significant reduction in workpiece handling time
• Improved access to weld joints and critical welding areas
• Increased productivity and manufacturing quality

Enhanced operator safety
Standardized manufacturing processes with reduced rework

Technical Documentation Included

Every system is supplied with comprehensive documentation to support safe operation and preventive maintenance, including: • Standard Operating Procedure (SOP)
• Autonomous Maintenance (AM) and Preventive Maintenance (PM) Schedules
• Engineering Responsibility Documentation

JS Tooling designs and manufactures custom fixtures, welding positioners, and engineered manufacturing solutions that improve productivity, precision, safety, and quality in heavy-duty manufacturing operations.
