Maximum Flexibility and Efficiency for Robotic Welding Cells

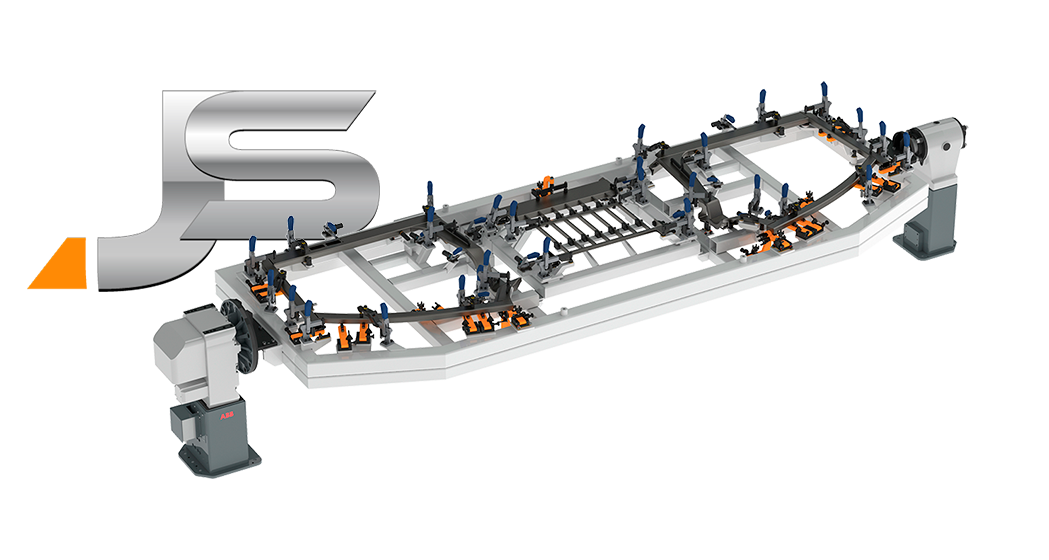

The JS Tooling Robot Welding Fixture is engineered for the assembly, tack welding, and robotic welding of cab assemblies, delivering exceptional dimensional repeatability, manufacturing flexibility, and maximum utilization of robotic welding cells.

Designed for direct mounting to the robot positioner, the fixture accommodates up to five different product configurations on a single base, including multiple left-hand (LH) and right-hand (RH) cab side assemblies, as well as two roof assembly models.

This versatile design significantly reduces changeover time, maximizes robotic cell utilization, and increases overall manufacturing productivity.

To ensure process reliability and consistent quality, the fixture integrates inductive proximity sensors with the robotic cell control system, verifying correct workpiece clamping before the welding cycle begins. This enhances both operator safety and weld quality while minimizing production errors.

Key Features
• Direct mounting to the robotic welding positioner for maximum stability and dimensional repeatability
• Accommodates up to five different product configurations using a single fixture
• Compatible with three LH/RH cab side assembly models and two cab roof assembly models
• Integrated inductive proximity sensors for workpiece clamping verification
• Designed for assembly, tack welding, and robotic welding operations
• Quick product changeovers using the same fixture base
• Heavy-duty construction designed for high-volume manufacturing environments

Production Benefits
• Maximizes robotic welding cell utilization
• Reduces setup and product changeover time
• Lowers investment in dedicated tooling
• Increases manufacturing flexibility for multiple product variants
• Delivers excellent dimensional repeatability and weld quality
• Reduces tooling inventory and operating costs

Standardizes manufacturing processes
• Improves operational safety through integration with robotic cell monitoring systems

Technical Documentation Included

Every system is supplied with comprehensive documentation to support safe operation and preventive maintenance, including:
Autonomous Maintenance (AM) and Preventive Maintenance (PM) Schedules

Engineering Responsibility Documentation
JS Tooling designs and manufactures custom fixtures, robotic welding tooling, welding positioners, and engineered manufacturing solutions that improve productivity, precision, automation, and quality in heavy-duty industrial manufacturing.
