Engineered for Heavy-Duty Manufacturing

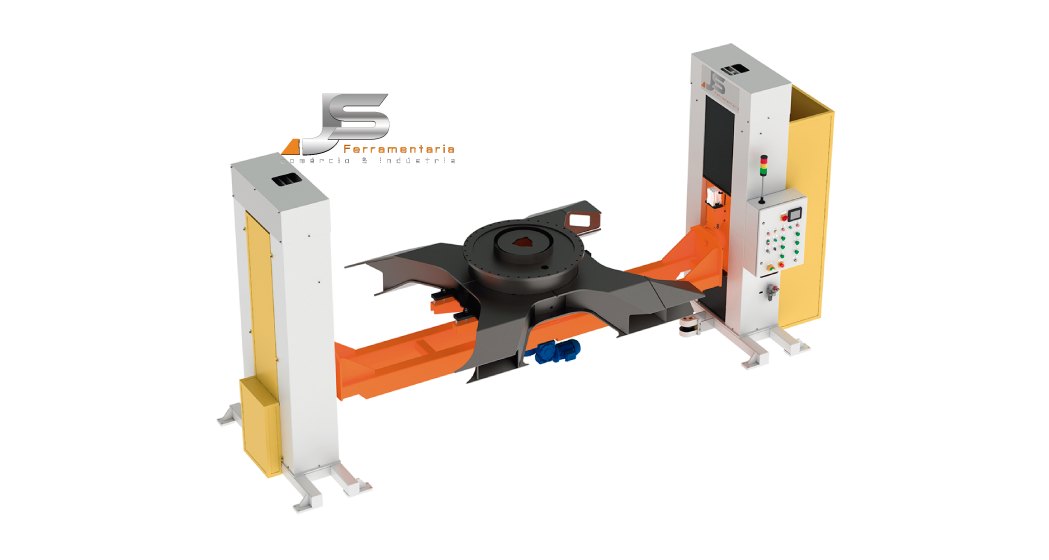

The JS Tooling Welding Positioner for the Center Section of 20-Ton Excavator Undercarriages is specifically engineered for high-performance heavy fabrication applications. It delivers exceptional precision, operator safety, and optimal workpiece positioning throughout the complete welding process.

With a load capacity of up to 8 metric tons (17,637 lb), the system features a custom-engineered welding fixture equipped with a motorized third-axis rotation system, providing continuous 360° rotation for unrestricted access to every weld joint on the undercarriage center section.

The positioner improves operator ergonomics, enhances weld quality and consistency, reduces manual handling, and significantly increases manufacturing productivity by optimizing workflow and reducing cycle times.

Key Features:
• Load Capacity: 8 metric tons (17,637 lb)
• Custom welding fixture for excavator undercarriage center section assemblies
• Motorized third-axis rotation system
• Full 360° rotation for complete welding access
• Optimized workpiece positioning throughout the welding process
• Increased productivity and manufacturing consistency
• Heavy-duty construction for demanding industrial applications

Designed for heavy equipment manufacturing, this welding positioner provides:

Applications & Benefits:
• Improved operator ergonomics and workplace safety
• Reduced workpiece handling and repositioning
• Higher weld quality and repeatability
• Faster production cycles
• Reliable performance in continuous-duty manufacturing environments

JS Tooling designs and manufactures custom fixtures, welding positioners, and engineered manufacturing solutions that meet the highest standards of heavy fabrication, delivering superior productivity, precision, and reliability
