20-Ton Excavator Undercarriage Welding Positioner
Engineered for Heavy-Duty Manufacturing

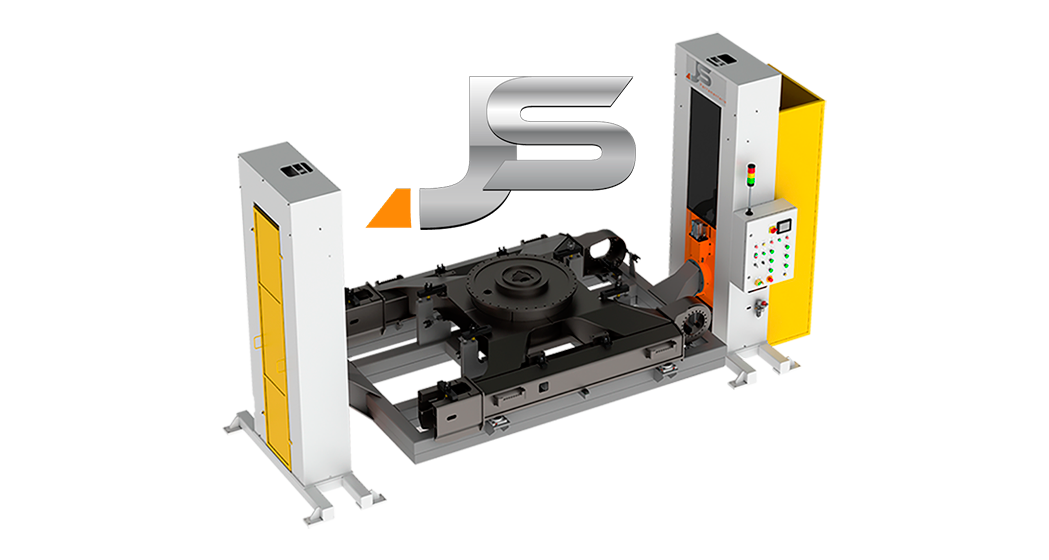

The JS Tooling Dual-Head Welding Positioner is specifically engineered for the assembly, tack welding, and complete welding of 20-ton excavator undercarriage assemblies. Designed for demanding heavy manufacturing environments, it delivers exceptional precision, stability, and productivity throughout the fabrication process.

With a load capacity of up to 8 metric tons (17,637 lb), the positioner provides outstanding workpiece stability, safe handling, and precise positioning during every stage of production, ensuring superior dimensional accuracy and consistent weld quality.

The system includes a custom-engineered welding fixture designed specifically for excavator undercarriage assemblies, providing secure clamping, unrestricted access to weld joints, and improved operator ergonomics throughout the welding process.

Key Features:
 • Dual-head support system for optimum load distribution
 • Load capacity: 8 metric tons (17,637 lb)
 • Custom welding fixture for excavator undercarriage assemblies
 • Ideal for assembly, tack welding, and complete welding operations
 • Improved workpiece positioning for superior welding access
 • Increased productivity and manufacturing consistency
 • Heavy-duty construction for demanding industrial applications

Applications & Benefits:
 • Superior workpiece stability during fabrication
 • Improved access to weld joints
 • Enhanced operator safety and ergonomics
 • Reduced handling and setup time
 • Increased productivity and weld quality
 • Reliable performance in continuous heavy-duty manufacturing

JS Tooling designs and manufactures custom fixtures, welding positioners, and engineered manufacturing solutions that help heavy equipment manufacturers improve productivity, precision, and process reliability. .
